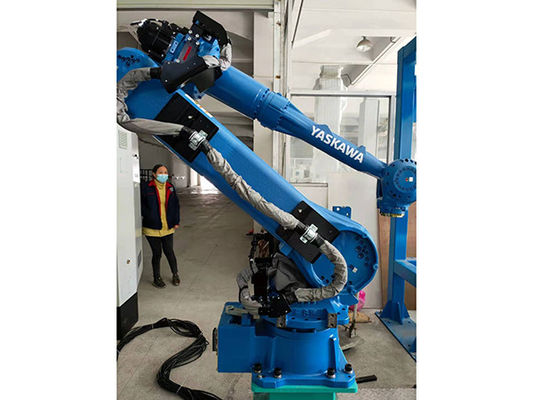

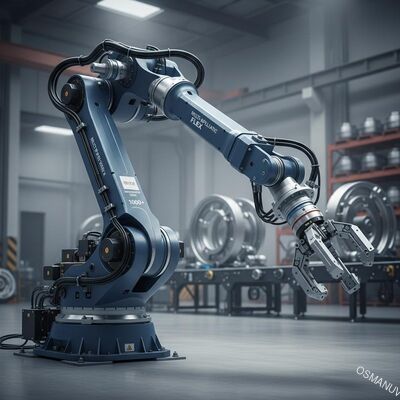

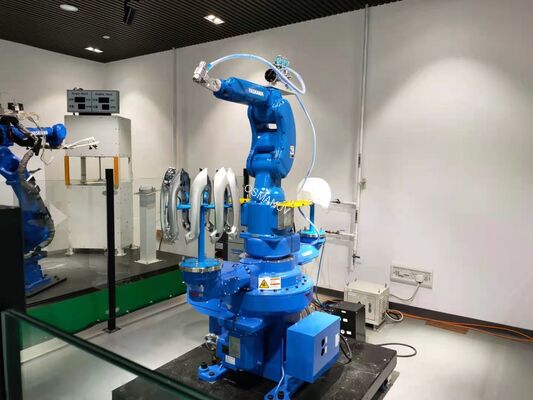

Heavy-Duty 6-Axis Industrial Robot Manipulator with High Payload Handling Customizable Reach and Multi-Application Flexibility
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | OSMANUV |
| Certificering: | ISO9001 |
| Modelnummer: | Specificatie |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 Instellen |
|---|---|
| Prijs: | Bespreekbaar |
| Verpakking Details: | Houten verpakking |
| Levertijd: | 30-45 dagen |
| Betalingscondities: | T/T |
| Levering vermogen: | Onderhandeling |
|
Gedetailleerde informatie |
|||
| Gordijn hoofden: | 1/2 | Sollicitatie: | Grafische industrie, verpakking, elektronica |
|---|---|---|---|
| Max coatingbreedte: | 1040 mm | Snijprecisie: | ±0,2 mm |
| Automatisering van coatings: | Hoge automatisering | Materiaalcompatibiliteit: | Papier, karton, plastic, metaal |
| Garantie: | 1 jaar | Coatingsnelheid: | 0-10 meter/min |
Productomschrijving
Our industrial robotic manipulator is engineered for high-repeatability tasks in demanding manufacturing environments. It delivers high-speed motion, low maintenance requirements, and exceptional multi-application flexibility. Suitable for both small-batch job shops and high-volume production lines.
Customizable options include: number of axes (4/6/7), reach length (500-2000 mm), payload capacity (3-300 kg), mounting type (floor/wall/ceiling/mobile), and communication protocols (EtherCAT, Profinet, EtherNet/IP).
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Number of axes | 6 axes | 4 / 5 / 7 axes customizable |
| Payload | 10 kg | 3 - 300 kg |
| Reach | 800 mm | 500 - 2000 mm customizable |
| Repeatability | ±0.03 mm | ±0.01 mm (high-precision mode) |
| Maximum speed (TCP) | 2.5 m/s | Up to 4 m/s customizable |
| Mounting orientation | Floor | Wall / ceiling / angle / mobile AGV |
| Protection class | IP54 | IP65 / IP67 (dust-proof & washdown) |
| Controller interface | Ethernet + Digital I/O | Profibus / EtherCAT / EtherNet/IP |
| Power supply | 220V AC | 400V AC or 24V DC (small manipulators) |
| Ambient temp range | 0 - 45°C | -10 - 55°C customizable |
- Material handling & machine tending (CNC, injection molding)
- Arc welding & spot welding
- Pick-and-place for PCB assembly
- Palletizing and case packing
- Screw driving and adhesive dispensing
- Polishing and deburring
- Cleanroom applications (Class 1000) with customizable sealing
We offer full customizable capabilities:
- Arm length and joint angle limits for confined spaces
- End-effector mounting plate pattern (custom bolt holes)
- Gripper type: parallel, angular, three-finger, or magnetic
- Built-in vision calibration routines
- Collaborative mode with torque limiting (for C-obot versions)
- Custom paint color, logo, and protective bellows
- Specialized software packages (e.g., welding path generator, screw driving sequencer)
- High rigidity carbon fiber or aluminum arm construction
- Drive system: AC servo motor with absolute encoder
- Backdrivable joints for easy manual teaching (select models)
- Drag-and-drop programming interface (graphical)
- Built-in collision detection and overload protection
- Low energy consumption - sleep mode after idle
- Real-time remote monitoring via Ethernet
- Customizable safety zones and speed limits per operation
- Free offline programming software (simulation included)
- 24/7 technical support hotline
- 12 months standard warranty (extendable to 36 months customizable)
- On-site installation and commissioning (global teams)
- Operator training - online, on-site, or customizable schedule
- Spare parts stocked in US, EU, and Asia hubs
- Packing: Steel-reinforced wooden crate with foam padding
- LCL / FCL container shipping or air freight
- Weight range: 80-1200 kg (depending on model)
- Each manipulator shipped with controller and cable set
- Customizable packing: anti-rust bag, export fumigation-free wood, shock sensors
Yes. Reach, arm shape, and joint limits are fully customizable to fit small or odd-shaped cells.
Yes. We provide IP65 and ISO Class 5 compatible manipulators with customizable covers and HEPA filtration ports.
We support handheld teach pendant, PC-based offline programming, and drag-to-teach (on customizable models).
Absolutely. Protocols like Modbus TCP, Profibus, and EtherCAT are customizable per order.
