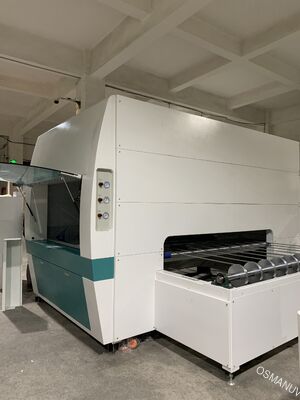

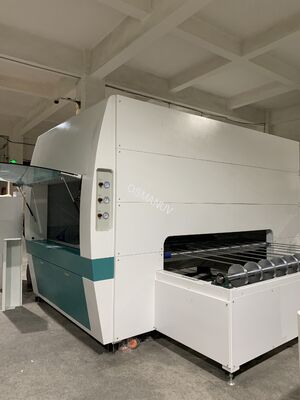

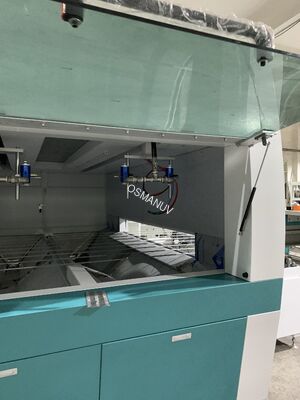

High-Output Rotary Spin Coating Line for Molded Pulp Industrial Packaging Interior Coating
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | OSMANUV |
| Certificering: | ISO9001 |
| Modelnummer: | OSM-PT-1320 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 Instellen |
|---|---|
| Prijs: | Bespreekbaar |
| Verpakking Details: | HOUTEN KIST |
| Levertijd: | 30 ~ 40 dagen |
| Betalingscondities: | T/T |
| Levering vermogen: | Onderhandeling |
|
Gedetailleerde informatie |
|||
| Betrouwbaarheid van coatings: | Hoge betrouwbaarheid | Coating manier: | Spuitcoating |
|---|---|---|---|
| Serie: | Ingenieur kan in het buitenland werken | Voorwaarde: | Nu. |
| Droogtijd: | verstelbaar | Coatingbreedte: | 1320 mm |
| Types van lampen: | IR-lamp | Machinemodel: | ZP-1300# |
Productomschrijving
High-Output Rotary Spin Coating Line for Molded Pulp Industrial Packaging Interior Coating
Composition of Production Line
This fully automated, inline production system consists of:
-
Automatic Feeding System: Syncs with upstream molding press to automatically load unfinished molded pulp products onto the line
-
24-Station Rotary Indexing Table: Precision-engineered core assembly with machined nests for consistent part holding and indexing
-

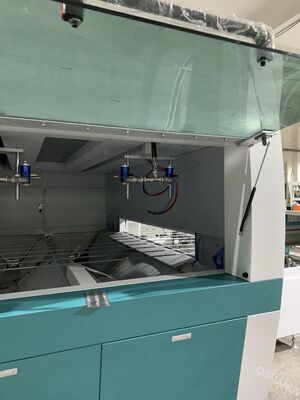

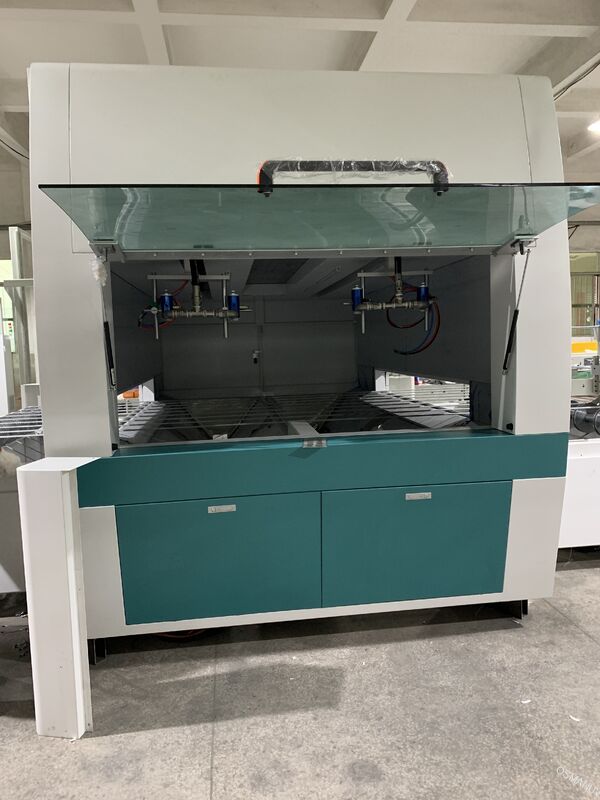

Precision Dosing & Spin Coating Units: Servo-controlled dosing pumps and high-speed spindles for accurate coating application
-

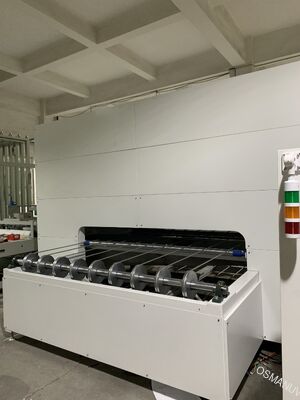

Integrated Drying/Curing Tunnel: Conveyorized multi-zone tunnel with IR and forced hot air for solvent evaporation and film curing
-

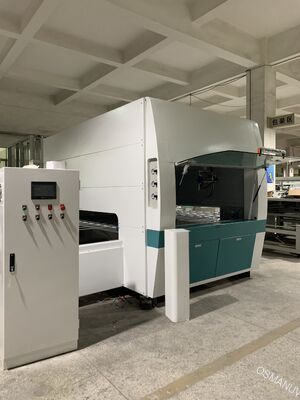

Centralized PLC Control Cabinet & HMI: Touchscreen interface for complete parameter control and production monitoring
-
Automatic Unloading & Stacking Unit: Organized collection and stacking of finished coated products
Product Description

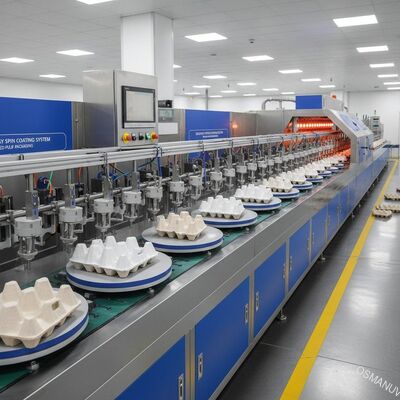

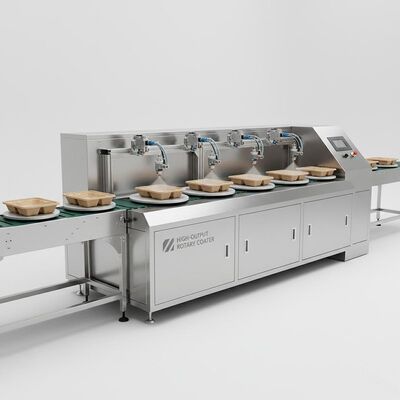

This 24-Station Rotary Spin Coating Line is engineered for high-volume, precision application of internal barrier coatings on molded pulp industrial packaging such as electronics protective inserts, automotive component trays, industrial pallets, and heavy-duty packaging containers. Utilizing advanced rotary spin-coating technology, the line securely holds each piece on custom-engineered fixtures and rotates it at controlled speeds while precision nozzles dispense coating, ensuring uniform coverage across all complex interior geometries including deep corners, recesses, and sidewalls. The line integrates dosing, spinning, and curing into one continuous, automated process, significantly enhancing production efficiency, coating quality consistency, and material yield.
Technical Parameters
| Parameter | Specification / Description |
|---|---|
| Number of Work Stations | 24 positions (rotary indexing) |
| Production Capacity | 15-35 cycles/min (360-840 pcs/hr, customizable by part size and drying time) |
| Coating Application Method | Precision metering pump + high-speed spin coating |
| Compatible Coating Types | Water-based dispersions, bio-based barriers (PLA, PHA), PFAS-free solutions |
| Coating Weight / Thickness | Adjustable, typical range: 5-25 gsm (dry); uniformity >95% |
| Drying / Curing Method | Integrated multi-stage tunnel (IR + forced hot air) |
| Control System | PLC with touchscreen HMI, recipe management, data logging |
| Power Supply | 380V / 50Hz / 3-phase (configurable to regional standards) |
| Machine Footprint (L×W×H) | Customizable to factory space (approx. 12m × 2.5m × 2.2m for standard configuration) |
| Applicable Product Dimensions | Customizable fixture design to accommodate diverse product sizes |
Application
Ideal for applying internal barrier coatings to molded pulp industrial packaging across multiple sectors:
-
Electronics packaging: Protective inserts for smartphones, laptops, tablets, home appliances, gaming consoles
-
Industrial products and automotive parts: Sturdy transport trays and custom inserts for heavy components
-
Cosmetic packaging: Specialty inserts requiring aesthetic and protective finishes
-
Furniture components: Shaped packaging elements for furniture protection during transit
Customization
The line configuration is fully customizable to fit specific factory space, production volume, and product geometry requirements. Customization options include:
-
Adjustable number of stations based on production needs
-
Custom-engineered fixtures for unique product shapes
-
Tailored coating thickness and application parameters
-
Additional features such as pre-treatment zone, quality inspection station, or robotic stacking
-
Coating colors and textures can be customized for branding or product differentiation
Features
-
Precision Coating: Ensures uniform, pinhole-free internal coatings on complex 3D geometries
-
High Production Output: 24-station design enables continuous high-volume operation
-
Energy-Efficient Drying: Multi-zone tunnel with staged heating reduces energy consumption
-
Stainless Steel Construction: Provides durability and corrosion resistance for industrial environments
-
PLC Control System: Centralized operation with easy parameter adjustment and recipe storage
Support and Services
-
Installation & Commissioning: On-site support for installation and line integration
-
Training Programs: Comprehensive operator and maintenance training
-
Maintenance Support: Regular maintenance guidance and troubleshooting
-
Technical Assistance: Responsive remote and on-site technical support
-
Spare Parts Availability: Lifetime supply of genuine spare parts
Packing and Shipping
-
Packaging: High-quality wooden box packaging with shock-proof materials to prevent shipping damage
-
Shipping: Worldwide shipping available; flexible logistics options including sea, air, and land freight
-
Delivery Time: 30-60 days depending on customization complexity and destination
FAQ
Q: Can the coating thickness be customized for different products?
A: Yes, the coating thickness is fully adjustable via PLC-controlled parameters, typically ranging from 5 to 25 gsm dry weight, to meet specific product requirements.
Q: Is this production line compatible with PFAS-free coating materials?
A: Yes, the system is specifically designed to handle PFAS-free, water-based, and bio-based barrier coatings in compliance with global environmental regulations.
Q: What is the typical lead time for a customized production line?
A: Standard delivery time is 30-45 days for a non-customized line. Customized configurations may require 45-60 days depending on engineering complexity.
