Composition of Production Line

This self-contained single-station spin coating system is a compact, modular unit designed for flexible operation. The standard production line composition includes:

1. Manual or Semi-Automatic Loading Station: For placing pulp molded products onto the spin fixture.

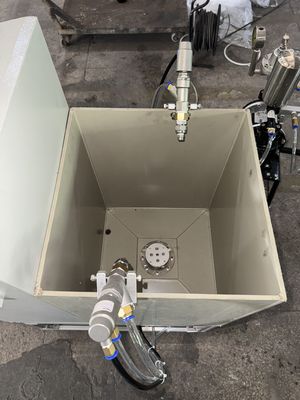

2. Core Single-Station Spin Coating Chamber: The heart of the system, featuring a programmable spin chuck with customizable fixture and safety enclosure.

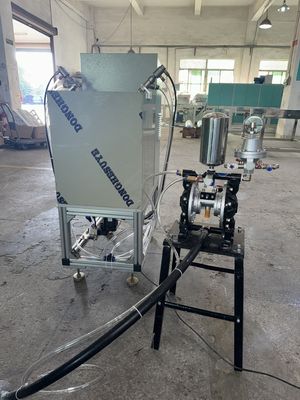

3. Precision Coating Dispense System: Syringe pump or solenoid valve for accurate, small-volume coating application .

4. Optional Solvent/Saturation Vapor Hood: For controlling drying speed and solvent exposure during coating development .

5. Touchscreen Control Console: Intuitive HMI for programming spin recipes, storing parameters, and controlling the coating process.

6. Optional In-situ Drying Module: Integrated IR lamp or hot air nozzle for immediate post-spin drying.

Note: The system can be integrated into a lab workflow with optional customizable upstream mold holders and downstream curing trays. For production environments, it can be paired with automatic feeding and unloading systems.

Product Description

Our Single-Station Spin Coating Equipment is a precision-engineered system specifically designed for applying uniform functional coatings to the internal surfaces of pulp molded meal containers, such as bowls, plates, trays, lunch boxes, and cups. It is the ideal solution for research & development, prototyping, small-batch production, and coating formula optimization.

The machine utilizes advanced spin-coating technology: a pulp molded product is securely held on a custom-engineered fixture or vacuum chuck within the coating chamber . A precision dispense system applies a controlled amount of coating (water-based, bio-polymer, or barrier coating) onto the product's internal surface. The fixture then rotates at programmable speeds, and the centrifugal force generated spreads the coating evenly across all complex interior geometries, including deep corners and sidewalls, creating a seamless, pinhole-free barrier .

This process ensures:

• Complete Coverage: Even on intricate 3D shapes with recesses and undercuts.

• Precise Control: Coating weight and thickness can be accurately controlled (typically 1-50 microns).

• Minimal Waste: Excess coating is spun off and can be collected and recycled, significantly reducing material consumption .

The system is designed for bench-top or floor-standing installation and is fully customizable to handle various product shapes, sizes, and coating materials.

Technical Parameters

The following table outlines specifications for our standard single-station spin coating models. Extensive customization is available to meet your unique product dimensions, coating materials, and R&D or production requirements.

Application

This single-station spin coating equipment is ideal for a wide range of applications in the pulp molding industry:

• R&D and Coating Formulation Development: Testing new water-based, bio-polymer, or barrier coatings on pulp substrates to optimize viscosity, adhesion, and coverage .

• Prototyping & Sample Production: Creating coated samples for customer presentations, field trials, and market testing before full-scale production.

• Small-Batch Production: Manufacturing limited quantities of specialty or high-value coated pulp products, such as premium food containers, cosmetic packaging, or industrial inserts.

• Process Parameter Optimization: Determining optimal spin speed, dispense volume, acceleration, and drying time for new product shapes .

• Quality Control & Testing: Evaluating coating performance (water resistance, oil resistance, heat resistance exceeding 100°C) on finished samples .

• Educational & Research Institutions: Supporting academic research into sustainable packaging and functional coatings.

Customization

We understand that every product and research goal is unique. Therefore, our single-station spin coating systems are highly customizable:

1. Custom Fixture Design: We design and manufacture fixtures tailored to the exact internal and external geometry of your specific pulp molded product (bowl, tray, box, cup). Options include vacuum chucks with precision-drilled holes for even holding force , mechanical clamps, or custom 3D-printed holders .

2. Fixture Material: Customizable selection of materials (aluminum, stainless steel, PTFE-coated) for compatibility with corrosive coatings or high-temperature drying.

3. Dispense System Customization: Choice of dispensing methods including precision syringe pumps for low-volume R&D, solenoid valves for timed dispensing, or even multi-nozzle arrays for complex coating patterns .

4. Speed Range & Control: Customizable maximum speed (up to 15,000 RPM) and acceleration profiles for specialized coating requirements.

5. Software & Data Logging: Tailored software features, multi-step recipe programming, and data export options (USB, Ethernet, Modbus) for integration into lab automation systems .

6. Chamber & Enclosure: Customizable chamber size to accommodate larger products, or specialized enclosures with solvent vapor control, inert gas purging, or humidity regulation.

7. Drying Integration: Customizable integration with optional in-situ IR heaters, hot air blowers, or UV curing lamps for immediate post-spin drying.

8. Automation Level: From fully manual lab units to semi-automatic systems with automated dispensing and cycle control.

9. Material Construction: Choice of standard powder-coated steel or customizable stainless steel (SUS 304) construction for wet environments or cleanroom applications.

Feature

• Precision Spin Control: High-torque motor with ±1% speed accuracy and programmable acceleration ensures repeatable, uniform coating application .

• R&D-Focused Design: Multi-step recipe programming and data logging capabilities allow researchers to systematically explore and document coating parameters .

• Versatile Fixturing: Customizable vacuum chucks and fixtures securely hold complex 3D pulp shapes, ensuring perfect positioning during the spin cycle .

• Minimal Material Waste: Precise, small-volume dispensing is ideal for expensive or experimental coating materials, significantly reducing R&D costs .

• User-Friendly Interface: Intuitive touchscreen HMI with recipe storage allows quick recall of optimized parameters for different products .

• Compact Footprint: Benchtop design saves valuable lab or production floor space .

• Robust & Safe Construction: Built for durability with safety-interlocked enclosures, spill containment, and emergency stop features.

• Future-Proof Modularity: Modular architecture allows for later upgrades and customization as research needs evolve .

Support and Services

• Pre-Sales Technical Consultation: We analyze your specific product samples, coating requirements, and research goals to propose the optimal customized system design .

• Sample Testing: Send us your pulp molded products and coating materials for process development and demonstration in our application lab.

• Installation & Setup: Detailed installation guide, remote setup support, and on-site commissioning available upon request .

• Comprehensive Training: Video-based and manual-based operator training covering machine operation, recipe programming, fixture changeover, and routine maintenance .

• Warranty: 12-month warranty on parts and labor, with extended warranty options available .

• Remote Support: 24/7 online technical support via phone, email, or video call .

• Spare Parts Service: Guaranteed availability of genuine spare parts for quick delivery.

Packing and Shipping

• Packing: The system is securely packed as a fully assembled unit in a foam-insulated cardboard box or custom-sized reinforced export wooden crate, with protective film on all sensitive surfaces .

• Included Accessories: All necessary cables, basic tools, consumables starter kit, quick start guide, and digital full manual are included .

• Shipping:

  • Port of Loading: Shenzhen / Guangzhou, China (as per client request)

  • Lead Time: Standard models: 30-45 days; Customized systems: project-dependent following design freeze

  • Shipping Method: Available by sea (FCL/LCL), air freight, or express courier

  • Shipping Terms: FOB, CIF, CNF, DDU - customizable based on your location

FAQ

Q1: Can this single-station spin coater handle irregularly shaped pulp molded products like deep bowls or complex trays?
A: Yes, absolutely. This is its primary function. The key is a customized vacuum fixture designed specifically to hold your unique 3D mold geometry securely during high-speed rotation. The spin coating process effectively coats all internal contours, including deep corners and sidewalls .

Q2: What is the typical coating thickness range achievable?
A: Coating thickness depends on several factors including material viscosity, spin speed, and solids content. Typically, the system can achieve uniform films from 1 to 50 microns. Process development using this machine will determine the exact parameters required for your target thickness .

Q3: How do I clean the system between different coating materials?
A: The fluid path is designed for easy cleaning. The dispense system uses disposable or easily cleanable components (such as syringes and tubing), and the fixture/chuck surface is wipe-clean. Detailed cleaning procedures are outlined in the user manual .

Q4: Is the machine suitable for water-based bio-polymer coatings?
A: Absolutely. The system is compatible with a wide range of coatings including water-based, solvent-based, and bio-polymer formulations. For water-based coatings, controlling drying speed (sometimes via an optional vapor hood) is an important part of the process development conducted on the machine .

Q5: Can I export process data for documentation and analysis?
A: Yes. Most models include a USB port or Ethernet connection to export run recipes and actual performance data (speed vs. time) for comprehensive R&D documentation and analysis .

Q6: How do I create a fixture for my unique pulp molded shape?
A: We can design and manufacture fixtures based on your 3D CAD model or physical sample. Simply send us your product specifications, and our engineering team will develop a customized holding solution. Alternatively, the standard vacuum chuck can often be adapted with soft pads or custom inserts .

Q7: What is the typical lead time for a system with a custom fixture?
A: Lead time for a standard system is typically 30-45 days. Adding a custom-designed fixture typically adds 2-4 weeks for design, manufacturing, and testing .
