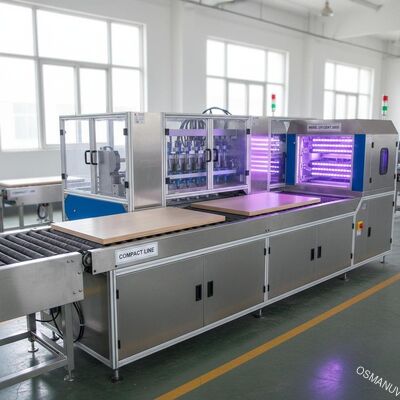

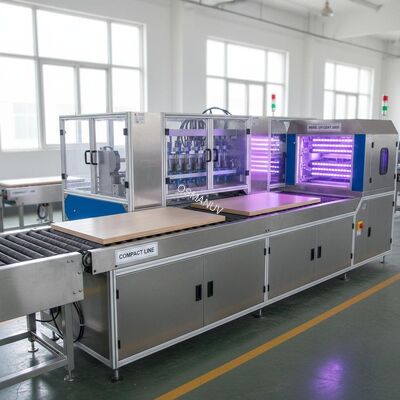

Compact UV LED Transfer Coating Line for Eco-Friendly Finishes on Wood Composite Panels
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | OSMANUV |
| Certificering: | ISO9001 |
| Modelnummer: | OSM-uvzy-1320 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 set |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Houten verpakking |
| Levertijd: | 35 dagen |
| Betalingscondities: | T/t |
| Levering vermogen: | Onderhandeling |
|
Gedetailleerde informatie |
|||
| Droogtype: | IR-drogen | Voedingssnelheid: | 1-20m/min |
|---|---|---|---|
| Maat: | 16800 × 1700 × 1940mm | Rol Qty: | 2 pc's |
| Verwerkingsdikte: | 380mm | Hoofd qty: | Twee/drie/vier |
| Rubberdiameter: | 100 mm | Werkkracht: | 251 kW |
Productomschrijving
Compact UV LED Transfer Coating Line for Eco-Friendly Finishes on Wood Composite Panels
Product Description
This compact UV LED transfer coating line is designed for small to medium-sized enterprises seeking an eco-friendly and space-efficient finishing solution. Utilizing low-heat, energy-efficient LED UV curing, it applies durable, low-VOC coatings onto wood composite panels like MDF and particle board. With a minimal footprint and quick job-change capabilities, it is perfect for short runs and customized orders without compromising on finish quality or production speed. The system's configuration is highly customizable for various panel sizes and coating types.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-UVZY-1320 |
| Application Substrate | MDF, Particle Board, Wood Composites |
| Max Panel Width | 1320mm standard (Customizable) |
| Line Speed | 4-20 meters/min |
| UV Curing System | 1 x 3000mJ/cm² UV LED Unit (Low Heat Emission) |
| Power Supply | 220V / 50Hz or 380V / 50Hz (Customizable) |
| Total Power | 25 kW (approx.) |
| Footprint | Compact design, ~12m length |
| Control System | User-friendly PLC with pre-set recipes |
Application
-
Ideal for job shops and custom furniture makers producing short to medium runs of finished panels.
-
Applying eco-friendly, low-odor coatings for indoor furniture, office furnishings, and store fixtures.
-
A versatile solution for prototyping new designs and finishes.
Feature
-
UV LED Technology: Energy-efficient, instant on/off curing with no warm-up time and minimal heat output.
-
Compact Footprint: Designed to fit into smaller production spaces without sacrificing capability.
-
Eco-Conscious: Compatible with 100% solid, low-VOC UV coatings for a greener manufacturing process.
-
Quick Changeover: Easy-to-adjust settings allow for fast transitions between different jobs and finishes.
Customization
This line is built to be customized:
-
Voltage and Power: Configured for your local workshop's electrical supply.
-
Width and Length: Adapted to your most common panel sizes and available space.
-
Automation Level: Options from manual loading to semi-automatic operation.
Support and Services
We provide detailed instructional videos, online training sessions, and direct access to technical support for troubleshooting and maintenance advice.
Packing and Shipping
The compact line is often shipped as a single, pre-assembled unit on a skid for easy unloading and quick setup at your facility.
FAQ
-
Q: What are the operational cost benefits of UV LED?
-
A: UV LEDs consume less power, have a longer lifespan (20,000+ hours), and produce no heat, which reduces cooling costs, leading to significant long-term savings.
-
-
Q: Is this line suitable for a factory with no prior UV experience?
-
A: Absolutely. Its user-friendly controls and our comprehensive training make it accessible for operators new to UV technology.
-
