Two Lamp UV Curing Machine for Wooden Furniture Surface Drying High-Intensity Instant Curing System
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | OSMANUV |
| Certificering: | ISO9001 |
| Modelnummer: | OSM-UV-1320 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 set |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Houten verpakking |
| Levertijd: | 35 dagen |
| Betalingscondities: | T/t |
| Levering vermogen: | Onderhandeling |
|
Gedetailleerde informatie |
|||
| Spanning: | 380V/50Hz | Voorwaarde: | Nieuw |
|---|---|---|---|
| Dimensie (L*W*H): | Aangepaste grootte, 1900*2230*1410MM, 1000*2575*1750mm, 1200*620*550mm (L*W*H), 1030*1000*620mm | Automatisch cijfer: | Automatisch, semi-automatisch, handmatig, andere |
| Garantie: | 1 jaar | Stroom: | 3 kW, 16 kW, 65,3 kW, 4,2 kW, 0,75 kW/220V/50Hz |
| Coatingsnelheid: | verstelbaar, 1-15 meter/min | Coatingbreedte: | 1320mm |
| Markeren: | UV curing machine for wooden furniture,two lamp UV curing system,high-intensity instant UV curing machine |
||
Productomschrijving

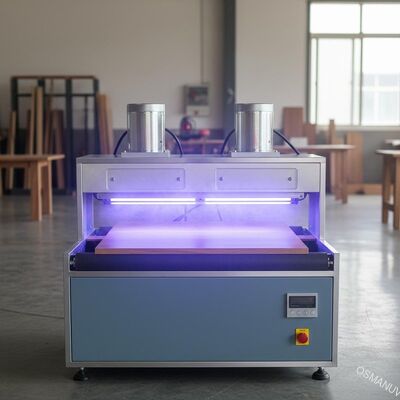

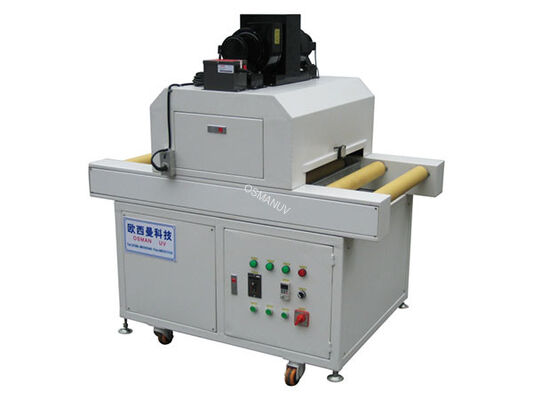

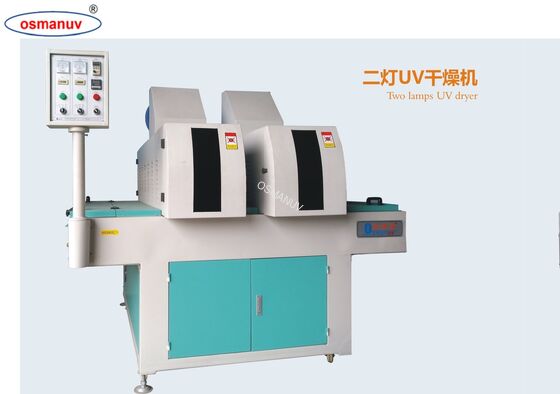

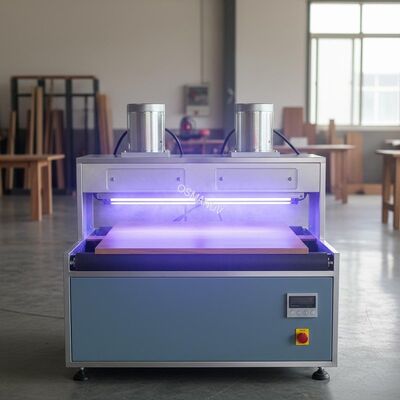

Two Lamp UV Curing Machine for Wooden Furniture Surface Drying High-Intensity Instant Curing System
Product Description
This industrial-grade two lamp UV curing machine delivers high-intensity ultraviolet light for instant drying and curing of coatings on wooden surfaces. Featuring two powerful UV lamps with optimized reflector technology, it ensures complete curing in seconds while significantly improving production efficiency and surface quality.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-UV-1320 |
| UV Lamps | 2 x 10 kW |
| Effective Width | 1320 mm (Customizable) |
| Conveyor Speed | 1-15 m/min |
| Peak Intensity | 1200 mW/cm² |
| Power Supply | 380V/3Phase/50Hz |
| Lamp Life | 2000 hours |
Application
Instant curing of UV coatings on wooden furniture, flooring, cabinet doors, and decorative wood panels in furniture manufacturing and woodworking industries.
Customization
-
Customizable curing width from 800mm to 1800mm
-
Customizable lamp power and intensity
-
Customizable conveyor type integration
Feature
-
Two lamp high-intensity output
-
Instant curing capability
-
Energy efficient operation
-
Easy lamp replacement system
Support and Services
-
Professional installation guidance
-
Comprehensive operator training
-
18-month warranty period
-
Remote diagnostic support
Packing and Shipping
-
Reinforced wooden crate packaging
-
Shock-proof internal cushioning
-
Weather-resistant external covering
FAQ
Q: What is the typical curing time for wood coatings?
A: Most wood coatings cure completely within 2-5 seconds at optimal conveyor speeds.
