Furniture Board Curtain Coating Machine High-Gloss Surface Finishing System for Wood-Based Pane
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | OSMANUV |
| Certificering: | ISO9001 |
| Modelnummer: | OSM-LT-1320T |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 set |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Houten verpakking |
| Levertijd: | 35 dagen |
| Betalingscondities: | T/t |
| Levering vermogen: | Onderhandeling |
|
Gedetailleerde informatie |
|||
| Productnaam: | Gordijncoatingmachine in Europese stijl | Dimensie (L*W*H): | Aangepaste grootte, 6000 mm × 2200 mm × 1400 mm |
|---|---|---|---|
| Gewicht: | 200 kg | Verwerkingsdikte: | 380mm |
| Transmissiekracht: | 2,2 kW | Coatingsnelheid: | 5-80 meter/minuut, traploze snelheidsregeling |
| Garantie: | 1 jaar | Voorwaarde: | Nieuw |
Productomschrijving

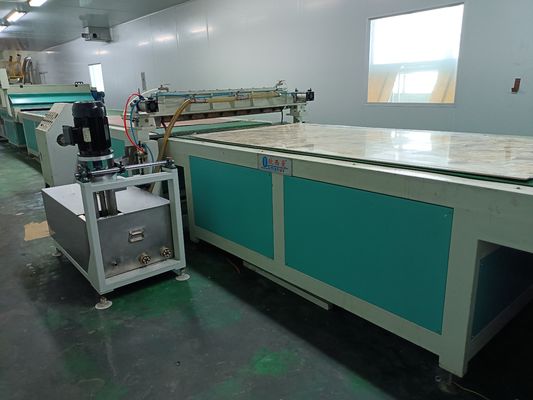

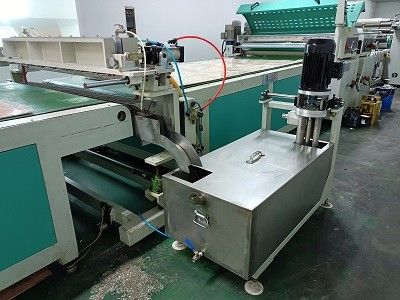

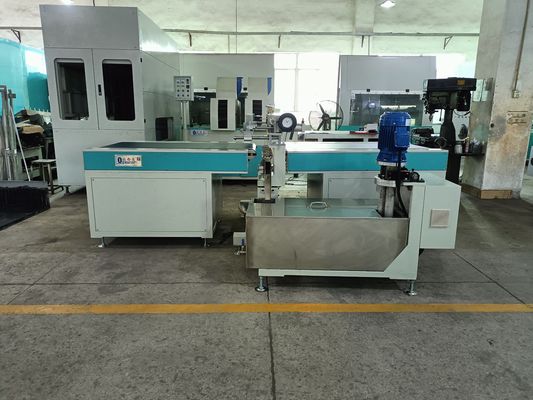

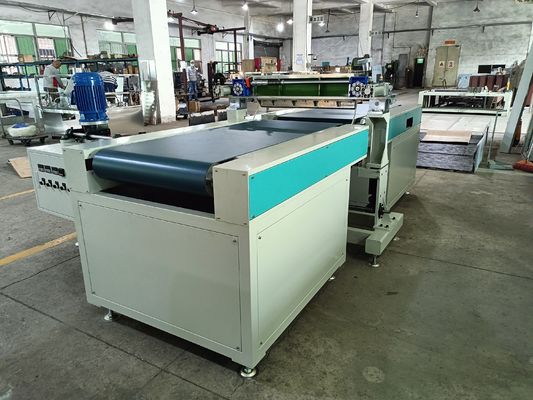

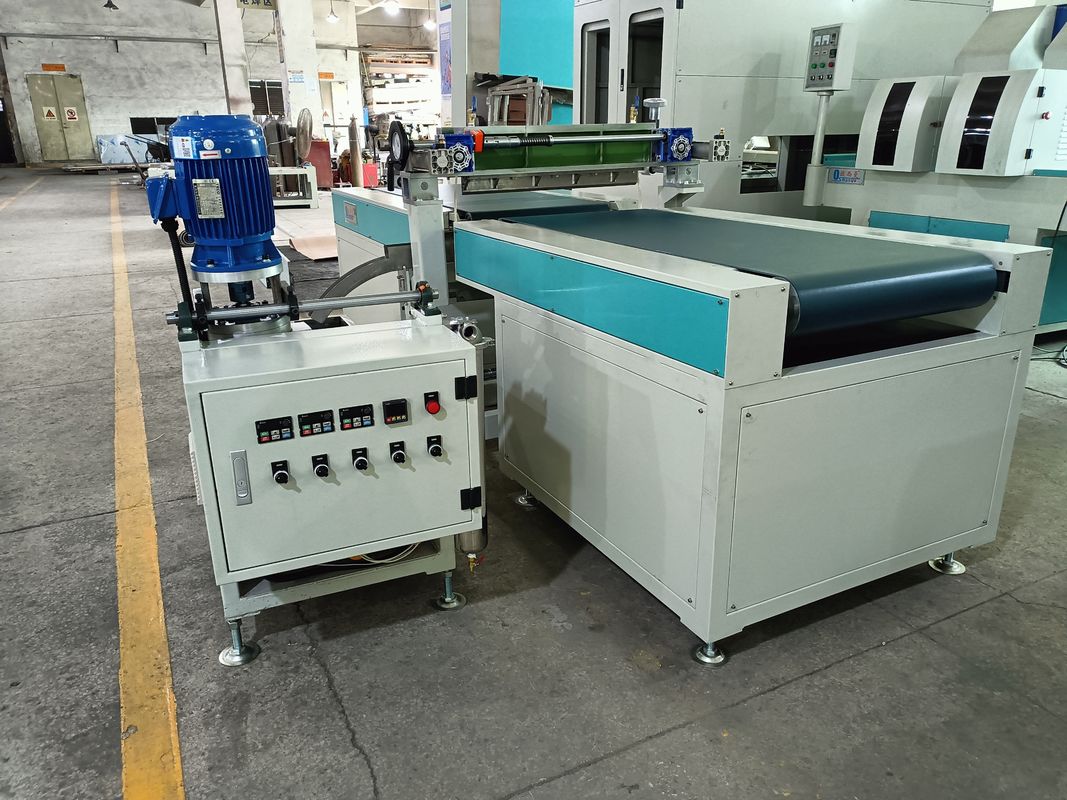

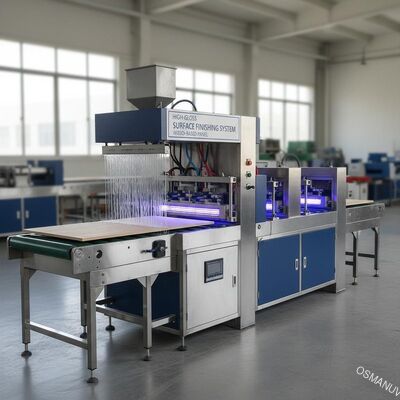

Furniture Board Curtain Coating Machine High-Gloss Surface Finishing System for Wood-Based Panels
Product Description
This precision curtain coating machine is engineered for furniture boards and wood-based panels, delivering flawless high-gloss finishes with exceptional uniformity. The system utilizes advanced curtain flow control technology to achieve perfect surface leveling and outstanding visual quality for premium furniture manufacturing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-LT-1320T |
| Coating Width | 1320 mm (Customizable) |
| Coating Thickness | adjustable |
| Line Speed | 5-25 m/min |
| Viscosity Range | 100-1500 mPa·s |
| Accuracy | ±2 μm thickness control |
| Control System | PLC with recipe management |
Application
High-quality coating of furniture panels, cabinet doors, wooden boards, and decorative surfaces requiring premium finish quality.
Customization
-
Customizable coating width from 1800mm to 3200mm
-
Customizable curtain head configuration
-
Customizable drying system integration
Feature
-
Perfect surface leveling
-
High gloss achievement
-
Minimal material waste
-
Consistent coating quality
Support and Services
-
Installation and commissioning
-
Process optimization
-
Operator training
-
Technical support
Packing and Shipping
-
Heavy-duty wooden crate
-
Professional packaging
-
Weather protection
FAQ
Q: What surface quality can be achieved?
A: The system guarantees over 95% surface uniformity with excellent gloss consistency.
