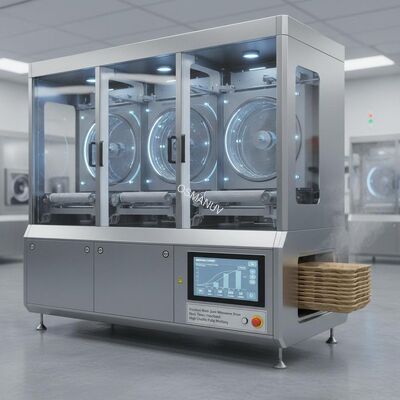

Precision Multi‑Zone Microwave Dryer with Real‑Time Moisture Feedback for High‑Quality Pulp Molding

Precision Multi‑Zone Microwave Dryer with Real‑Time Moisture Feedback for High‑Quality Pulp Molding

Composition of Production Line

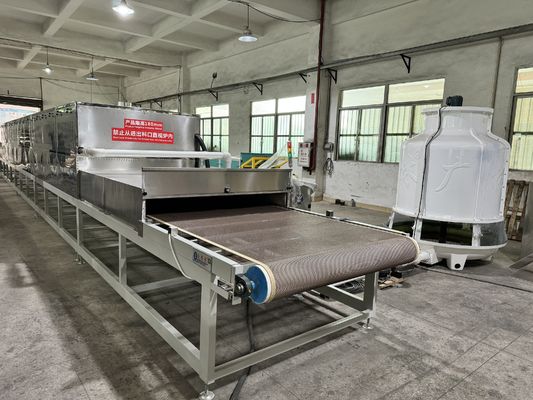

The complete inline drying system consists of:

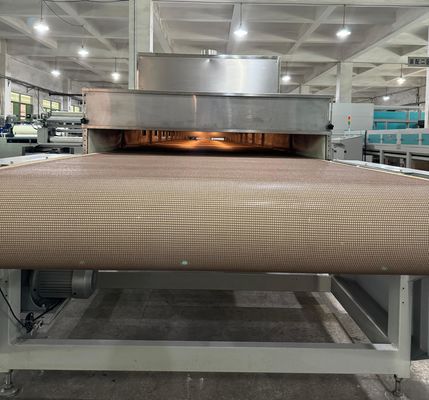

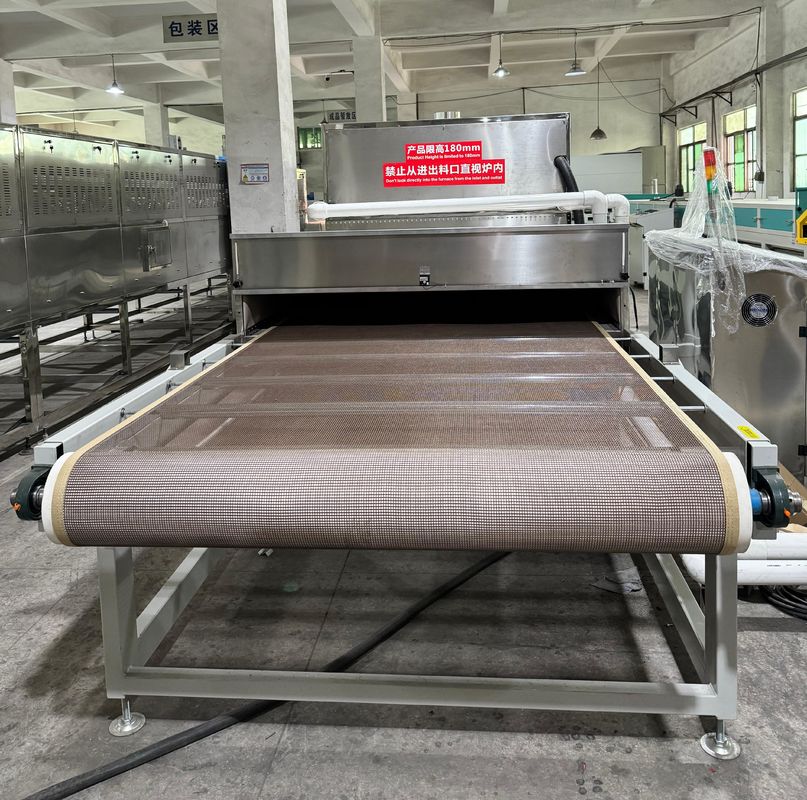

• Infeed Conveyor Belt — stainless steel mesh or PTFE belt, width customizable

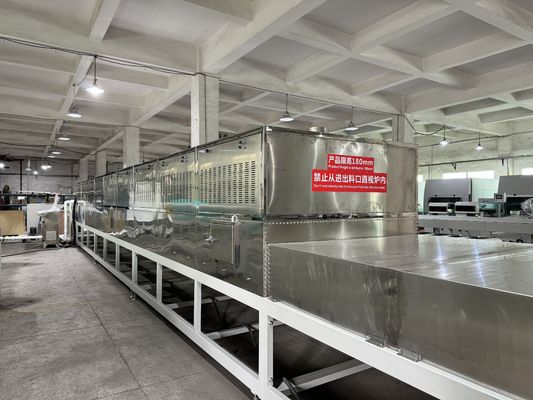

• Multi‑Cavity Microwave Drying Tunnel — 4–20 independent resonant chambers

• Magnetron Generator Cabinets — air‑cooled or water‑cooled, individually addressable

• High‑Capacity Moisture Exhaust System — forced ventilation with condensation trap

• Microwave Suppression Chambers — at both inlet and outlet for leakage safety

• PLC Control Cabinet — Siemens or equivalent, with 10″ touchscreen HMI

• Real‑Time Temperature & Belt Speed Control — closed‑loop feedback

• Outfeed Conveyor with Optional Stacker — for finished product collection

All product contact parts are made of SUS304 food‑grade stainless steel.

Product Description

This Continuous Microwave Tunnel Dryer is specifically engineered for the high‑volume drying of pulp molded products including egg trays, fruit trays, food containers, industrial packaging, and custom molded fiber shapes. Unlike conventional hot‑air drying that relies on slow surface‑to‑core heat conduction, this system uses 2450MHz microwave energy to directly agitate water molecules inside the fiber structure. The result is volumetric heating — the product dries uniformly from the inside out, eliminating the hard outer crust that often traps moisture in traditional dryers.

Microwave drying has been proven to reduce drying time by 25–37.5% compared to convective drying, with a 27% enhancement in drying rate. The effective moisture diffusion coefficient increases from 3.01×10⁻¹⁰ to 4.49×10⁻¹⁰ m²/s. This translates to higher throughput, lower energy costs, and superior product quality with minimal warping or cracking.

The conveyor belt speed is infinitely adjustable via frequency inverter, and the belt width can be customized from 400mm to 1600mm. The multi‑zone design allows independent power control for each cavity, enabling a tailored drying profile for different product geometries. Real‑time moisture monitoring (optional) provides closed‑loop feedback for consistent final moisture content.

Technical Parameters

Application

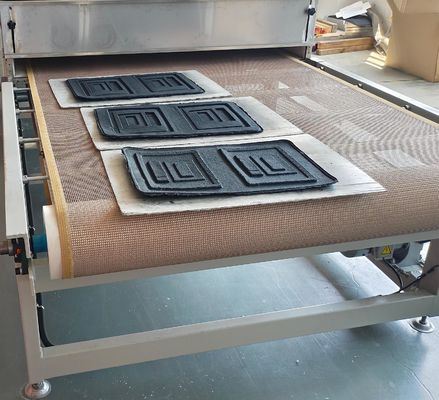

• Egg trays, fruit trays, and seedling trays (high‑speed drying)

• Disposable food containers: plates, bowls, clamshells, lunch boxes

• Cup carriers and drink trays for fast‑food chains

• Industrial pulp molded packaging: corner protectors, edge guards, pallet supports

• Electronics packaging trays (anti‑static molded fiber)

• Medical pulp molded products: bedpans, kidney trays

• Horticultural products: biodegradable plant pots

Customization

We offer full customization to fit your exact production needs:

• Customizable microwave power — from 15kW (lab scale) to 400kW (industrial mass production)

• Customizable belt width — any width from 300mm to 2000mm available

• Customizable tunnel length — add or remove microwave cavities to match desired throughput

• Customizable belt material — PTFE mesh for lightweight products, stainless steel for heavy/dense products

• Customizable cooling system — air‑cooled for normal duty, water‑cooled for 24/7 high‑temperature operation

• Customizable control system — integration with MES/SCADA, remote monitoring, custom recipe structures

• Customizable conveyor height — belt height adjustable from 750mm to 1000mm

• Customizable voltage & frequency — for any country (208V, 380V, 400V, 460V; 50Hz or 60Hz)

• Customizable safety features — light curtains, area scanners, remote E‑stop pull cords

Feature

• Volumetric internal heating — dries from inside out, eliminates crust formation

• 5–10x faster than hot‑air drying — dramatically reduces drying time

• Up to 30% energy savings compared to conventional hot‑air tunnels

• High drying uniformity — ±2% moisture deviation across entire product

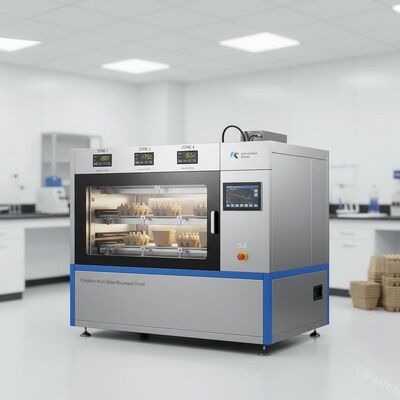

• Multi‑zone independent power control — create custom drying profiles for complex shapes

• Built‑in sterilization effect — kills bacteria, molds, and insects

• Low product temperature (70–95°C) — preserves fiber integrity, prevents scorching

• Minimal warping & cracking — uniform internal heating reduces deformation

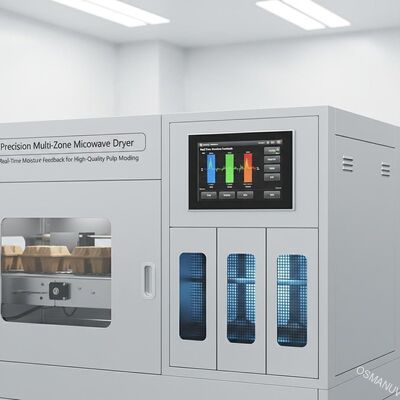

• Real‑time monitoring option — closed‑loop moisture feedback for consistent quality

• Easy maintenance — swing‑open doors for interior access, tool‑free magnetron replacement

• Data traceability — USB/Ethernet export for quality records

Support and Services

• Lifetime free technical support — phone, email, video call

• On‑site installation & commissioning — engineers available worldwide

• Operator training — 5 days on‑site training included

• 2‑year warranty — on magnetrons, PLC, conveyor drive, and electronics

• Spare parts supply — guaranteed for 10+ years; 48‑hour global shipping

• Preventive maintenance program — annual inspection, calibration, and parts replacement planning

• Remote diagnostics — VPN access for real‑time troubleshooting

• Free sample testing — send your wet molded products; we provide drying test report

Packing and Shipping

• Packed in export‑grade plywood cases with VCI anti‑rust film and foam padding

• Shipped in modular sections for container loading (20ft or 40ft HC)

• Each crate includes: English manual, CE certificate, wiring diagrams, calibration report, tool kit, spare parts

• Shipping terms: FOB / CIF / EXW by sea or air freight

• Lead time: 30 days (standard); 45–60 days (fully customized)

FAQ

Q1: How much faster is microwave drying than hot‑air drying?
A1: Microwave drying is typically 5–10 times faster. Research shows a 27% enhancement in drying rate and 25–37.5% reduction in total drying time compared to convective drying.

Q2: Will microwave drying burn or scorch the pulp fiber?
A2: No. Product temperature stays between 70–95°C, well below the combustion point. Real‑time temperature monitoring and adjustable power prevent overheating.

Q3: Is microwave leakage safe for operators?
A3: Yes. Leakage is kept below 1 mW/cm² — well within international safety standards (CE, IEC 60519-6). Safety interlocks shut down the system if any door is opened.

Q4: Can the belt width be customized for non‑standard product sizes?
A4: Absolutely. We offer belt widths from 300mm to 2000mm, fully customizable to your product dimensions.

Q5: What is the typical final moisture content achievable?
A5: Final moisture content can be controlled down to ≤5%, and even as low as 2–3% for specific applications.

Q6: Can the dryer be integrated into my existing production line?
A6: Yes. The conveyor height, belt speed, control interface, and dimensions are all customizable for seamless integration with upstream forming machines and downstream hot‑pressing stations.
