Energy-Efficient Microwave Drying System for Pulp Molding: Rapid and Uniform Internal Heating
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | OSMANUV |
| Certificering: | ISO9001 |
| Modelnummer: | OSM-WBHG-1320 |
| Document: | microwave drying equipment.pdf |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 set |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | houten kist |
| Levertijd: | 30 tot 45 dagen |
| Betalingscondities: | T/T |
| Levering vermogen: | Onderhandeling |
|
Gedetailleerde informatie |
|||
| Droogtype: | Magnetrondrogen | Controlesysteem: | PLC-touchscreen |
|---|---|---|---|
| Garantie: | 1 jaar | Brengsnelheid: | 1-10m/min |
| kleur: | Zilverwit | Op de droge manier: | Microgolf |
| RUBRIEK: | microgolfdrogers | Afmetingen: | Afhankelijk van het model, aanpasbaar |
Productomschrijving
Energy-Efficient Microwave Drying System for Pulp Molding: Rapid and Uniform Internal Heating
Composition of Production Line:

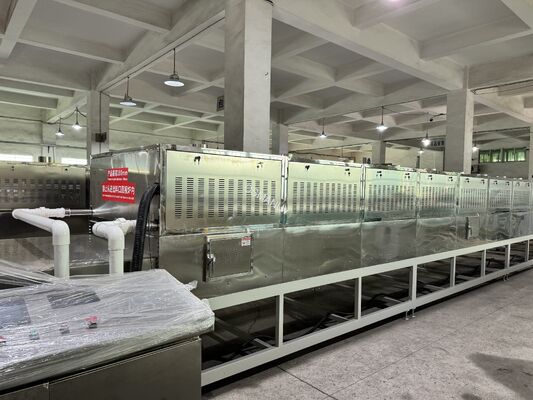

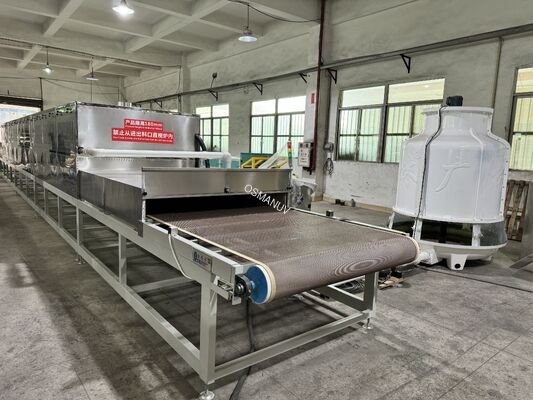

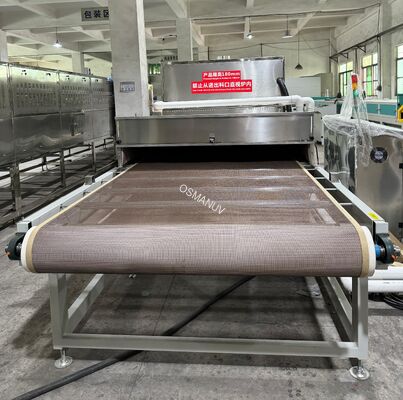

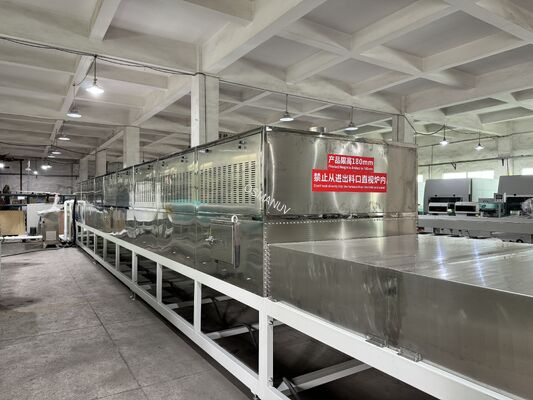

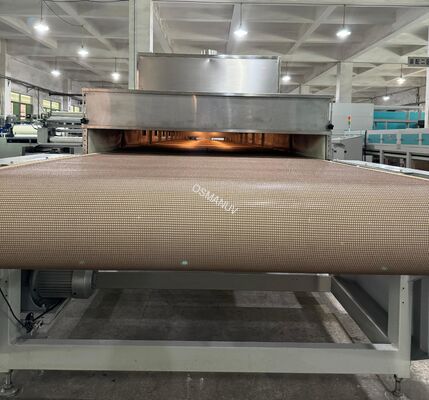

This system comprises a conveyor belt, microwave generator cabinets, resonant cavities, a thermal insulation chamber, a moisture exhaust and ventilation unit, a PLC control cabinet, and a human-machine interface (HMI).
Product Description:
This energy-efficient microwave drying system is specifically designed for the internal drying of pulp molded products. It uses microwave energy to directly and rapidly heat water molecules within the pulp fibers, resulting in significantly faster drying times, lower energy consumption, and more uniform moisture removal compared to conventional methods. It is an ideal solution for high-volume production lines seeking to reduce operating costs and increase throughput.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Microwave Power | 60kW (Standard), Adjustable |
| Drying Speed | 1-3 meters/min (depends on product thickness) |
| Power Supply | 380V / 50Hz / 3 Phase |
| Overall Power Consumption | 70-80 kW/hr (at full capacity) |
| Drying Temperature | 70°C - 90°C (Internally generated) |
| Moisture Removal Rate | Up to 30 kg/hr |
| Dimensions (L x W x H) | 12m x 3m x 2.2m |
| Customizable Options | Yes, including conveyor length, power configuration, and control system integration |
Application:
Ideal for drying various pulp molded products such as industrial packaging trays, electronic cushioning pads, seed trays, and disposable food containers like plates and bowls.
Customization:
This system is highly customizable. We can adjust the tunnel length, power output, and conveyor width to fit your specific production space and product requirements. Control systems can be integrated with your existing production line.
Feature:
-
Rapid & Uniform Drying: Heats the product from the inside out, eliminating wet spots.
-
High Energy Efficiency: Direct energy transfer to water molecules reduces overall energy consumption.
-
Compact Design: Saves valuable factory floor space.
-
Precise Control: PLC system allows for precise control of power and speed for consistent results.
-
Customizable power settings for different product densities and moisture content.
Support and Services:
We offer installation supervision, comprehensive operator training, and a 12-month warranty. Our technical support team is available for remote diagnostics and troubleshooting.
Packing and Shipping:
The system is disassembled into modular sections for safe transport. All components are securely packed in weatherproof and shock-absorbent wooden crates. Shipping documents and assembly manuals are provided.
FAQ:
-
Q: How does microwave drying save energy compared to traditional hot air drying?
A: It directly heats the water inside the product, rather than heating the entire surrounding air and chamber, leading to much higher thermal efficiency and shorter cycle times. -
Q: Is the system safe to operate?
A: Yes, it features a fully enclosed design with multiple safety interlocks to prevent microwave leakage, ensuring a safe working environment. -
Q: Can this system be customized for our existing conveyor line?
A: Absolutely. We can customize the inlet/outlet height and conveyor type to ensure seamless integration with your current setup.
